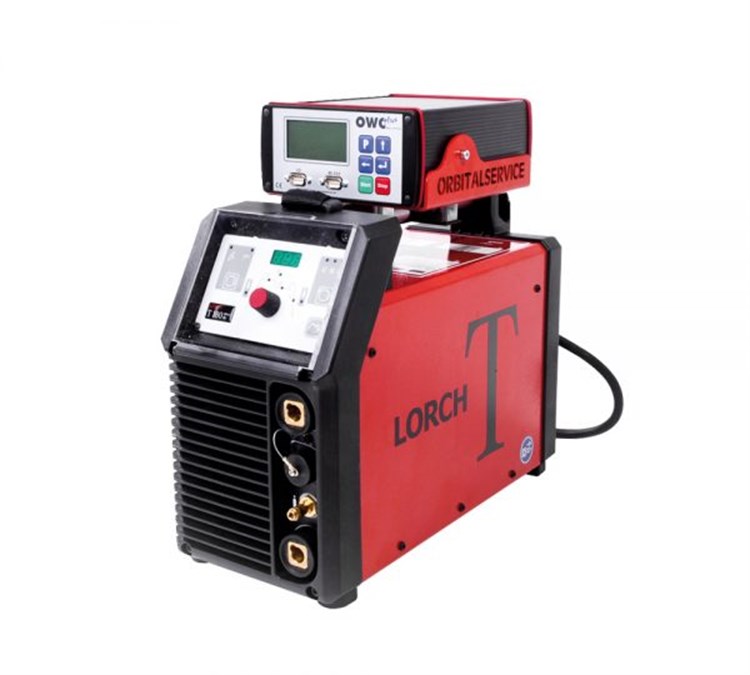

OWCplus (OWCpl100)

The orbital welding system BasicPlus consists of an orbital control unit and a standard Lorch TIG power source, model T. All machine types of this series (18 different models) have an “Orbital software on board

• automatic operator assistance
• intuitive input
• Parameter adjustment possible during welding
• Various motor control cards for the use of all types of welding heads
• Connection possibility for Bluetooth printer

Technical Data

• Supply voltage 50 / 60 Hz: 2x 230V
• Mains fuse protection: 16A
• Dimensions L x W x H in mm: 480 x 185 x 410
• Weight (kg): 16
• Communication (documentation, updates): 2x RS 232

Accessories

• Cable remote control RCplus+
• Water cooling unit WUK 7
• TIG hand torch
