CompactOne (CompactOne180-100)

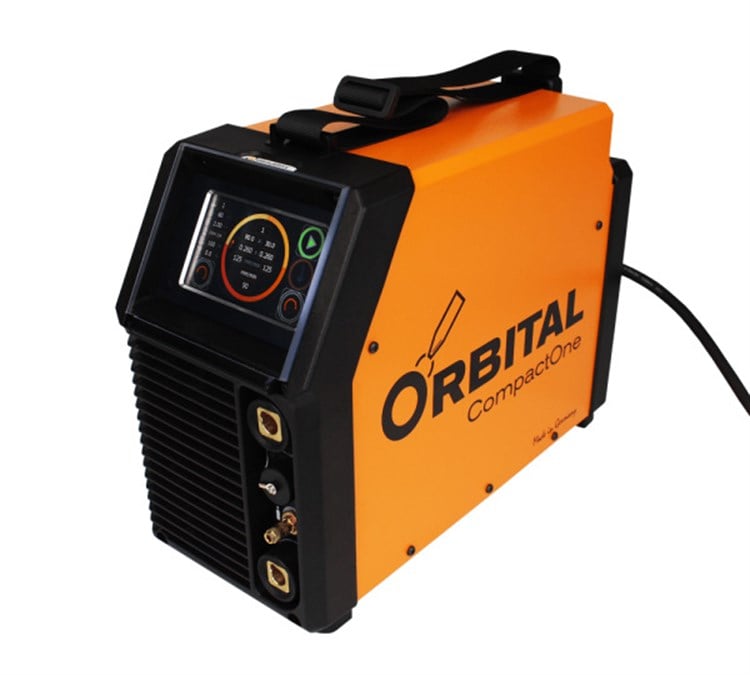

The orbital welding machine CompactOne is the smallest and lightest orbital welding-compact machine worldwide. It is not only characterized by its small dimensions and the very small weight. The easy operation guidance and program-creation in smartphone-style (machine calculates welding programs by itself) and also the many possibilities of the very easy to operate software, are outstanding. The operator is able to customize the machine to his needs. Easy and discreet notifications make the communication with the machine easier. A rash of help functions are available. The most important functions and information can be seen and selected on the main screen. The hardware contains only components, which were purchased in Germany and are available over a long period. The use of a mass flow controller (MFC) for the gas monitoring is particularly innovative. In this case the gas flow is not only controlled, but also documented. Regular updates not only keep the system on the latest stand of technology, but the operator benefits from the perceptions, which are brought in by us or our customers. For the data transfer 2 USB-ports are available. For the transport we offer a suitable case, which can be connected with a trolley.

Connection voltage 50/60 Hz: 230 V AC

Main fuse: 16 A
Dimensions L x W x H (mm): 480 x 185 x 326
Weight: 14,5 kg
Communication (Documentation, Updates): 2 x USB

Accessories

• Cable remote control RCplus+ and remote control WLan
• Water cooling unit WUK 7
• USB port for Bluetooth connection printer or oxygen analyzer
• TIG hand torch
